Understanding the Factors that Determine Maximum EV Charging Output

As electric vehicles (EVs) become more common, understanding the capabilities and limitations of EV charging stations is crucial. With the rapid growth in EV adoption, charging infrastructure needs to keep pace, providing fast, reliable service to drivers. One of the biggest questions people have when considering an electric vehicle is, “How fast can I charge my EV?” The answer to this depends on several factors that determine the maximum output of a charging station.

Level 2 vs. DC Fast Charging

The key difference between Level 2 and DC Fast (Level 3) EV charging stations lies in how they deliver power to the electric vehicle and how that power interacts with the car’s onboard systems, specifically the onboard charger and the battery. Level 2 charging stations supply alternating current (AC) electricity to the electric vehicle. Since electric vehicle batteries can only accept direct current (DC), the vehicle’s onboard charger converts the AC power into DC, which is then stored in the battery.

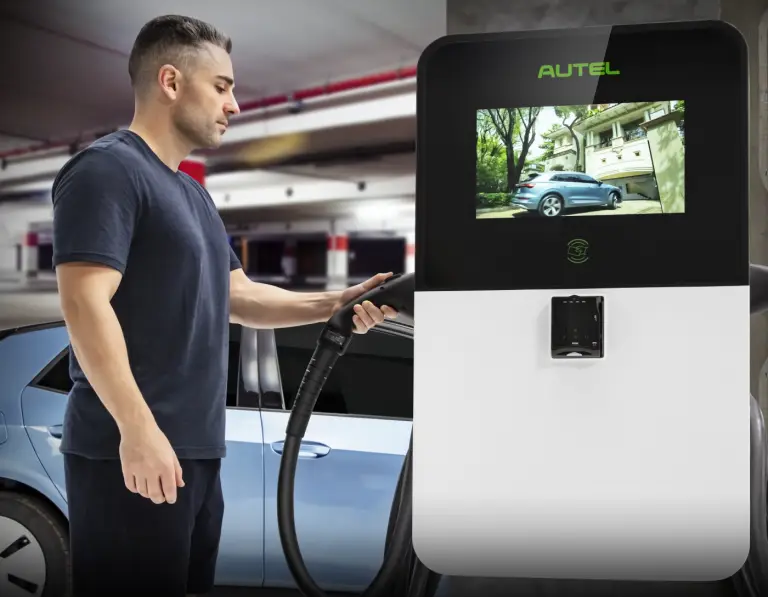

Level 3 stations, commonly known as DC fast chargers, deliver direct current (DC) power directly to the vehicle’s battery, bypassing the onboard charger entirely. The vehicle’s onboard charger is not used in this case because the station itself converts AC power into DC, delivering it directly to the battery at a much higher voltage and current. It’s important to note that industry best practices recommend keeping an EV’s battery between 20 and 80 percent of its full capacity. Keeping the battery in this range ensures it operates in a balanced state and reduces the strain on it.

Battery Capacity and Compatibility

It can be easy to assume that the type of charging station (Level 1, Level 2, or DC Fast) is the only factor to consider. However, the vehicle’s ability to accept that power is just as important. Not all electric vehicles are created equal in terms of charging output. For example, a Nissan Leaf has a battery that can accept around 50 kW of power, while the latest Tesla Model S Plaid can handle up to 250 kW.

If a vehicle isn’t compatible with the maximum output of the charger, it won’t benefit from the station’s full power. This is determined by the vehicle’s battery management system, which ensures the battery absorbs power without overheating or being damaged.

Another factor is battery size. Larger batteries, such as those in long-range EVs, will take longer to charge. For example, charging a 100 kWh battery to full capacity will naturally take longer than charging a smaller 50 kWh battery, even at the same power output.

Grid Capacity & Infrastructure Limitations

The infrastructure surrounding a charging station plays a huge role in determining its maximum output. Even the most advanced charger is limited by the amount of power the local grid can provide. Key considerations include:

  • Local Grid Capacity – In areas with limited electrical infrastructure, high-powered chargers might not be an option. Power-hungry DC fast chargers can place significant demands on the local grid, and if the area isn’t equipped to handle the load, the charging output might be restricted.
  • Transformer & Wiring – The cables and transformers connecting a station to the grid also determine the maximum power that can be delivered. If these are undersized, even a powerful charger may need to throttle down its output to avoid overloading the system.
  • Load Balancing – In busy charging stations with multiple ports, load balancing technology can help manage power consumption. This technology ensures the power is distributed evenly across several vehicles but might limit maximum output when demand is high.

Cooling Systems & Thermal Management

High-power charging generates a lot of heat, both in the charger and the vehicle’s battery. Efficient cooling systems are essential to maintain maximum charging output. Advanced chargers often feature liquid cooling systems to prevent overheating.

Without effective cooling, a station may reduce the charging output to protect the components and the EV battery. Similarly, EV batteries have thermal management systems that regulate temperature during charging. When temperatures get too high, the system can slow down the charge to avoid damage, reducing the overall charging output.

User Demand & Peak Times

Charging output can also be affected by the number of users at a station. If a charging station is designed to handle multiple vehicles simultaneously, individual output might be lower when several cars are connected at once. For instance, at a shared station, the power might be divided between two or more vehicles, slowing down the overall charging time for each. Additionally, peak demand times – such as holidays or weekends – can lead to slower charging output if the local grid is under strain or the station is crowded.

The maximum output of an EV charging station is determined by a range of factors, from the type of charger and the vehicle’s battery to the surrounding infrastructure and environmental conditions. While advancements in technology continue to push the limits of charging output, understanding these variables is key to managing expectations and making informed decisions about EV charging.
